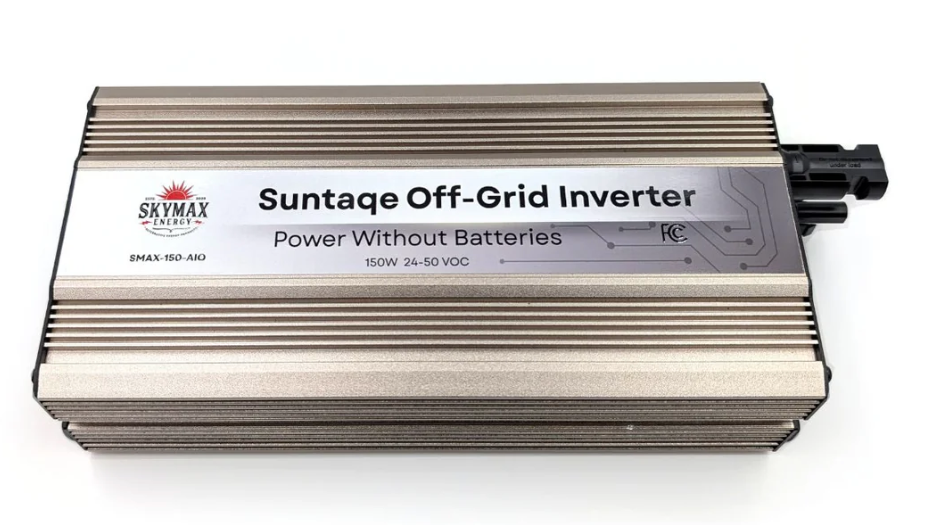

Suntaqe 150 Watt Solar Power Conditioner & Inverter

Bypassing the need for batteries makes the Suntaqe perfect for remote ponds, camping, RV, farm, greenhouse, and shed use. Just plug in a compatible solar panel or panels, and the Suntaqe intelligently controls the output to operate directly from the sun.

No batteries to fail, no batteries to replace, and zero maintenance! This is truly remote, direct-drive AC power. When you position the solar panel into the sun and plug it in, you will get home-type AC power.

Engineered specifically to interface directly with solar panels, the Suntaqe is the ultimate economy solution for pico-off-grid systems. It excels at driving reciprocating electromechanical loads.

Recommended Applications
Pond or lake pumps and aerators, exhaust fans, automatic feeders, LED or CFL lighting, cell phone charging, battery charging (charge a battery during the day for nighttime use!), laptops, small televisions or monitors, portable radios, fans, and boondocking. Not recommended for medical equipment or critical loads.

Important System Sizing Note
The Suntaqe is a direct-drive solution and DOES NOT utilize Maximum Power Point Tracking (MPPT). Users should expect an effective power transfer of approximately 40% relative to the solar panel's rated wattage.

Sizing Example: To drive an 80W pump continuously, you will need approximately 200W of solar panels to account for this direct-drive overhead.

Suntaqe Inverter Features

The Suntaqe converts DC power to usable 110/120 volt power for your appliances with a host of built-in conveniences:

• LED Indicators: Green LED on the front panel confirms power on; Red LED warns of a faulty condition.
• Aluminum Case: Provides optimal cooling and durability.
• Thermal Cooling Fan: Keeps the unit operating safely under load.
• Built-In Protections: Overload protection, over-temperature protection, over-voltage protection, low-voltage protection, AC output short circuit protection, and reverse polarity protection. Auto-resets on most fault conditions.
• Noise Free Operation with a simple On/Off switch.

New Advanced Features

Unlike standard voltage regulators, the Suntaqe is designed to handle the unique demands of running AC loads directly from solar panels without a battery buffer:

• Pulse Damping: Integrated bulk capacitance smooths out the high-current "gulps" from pump strokes, protecting the solar panel voltage from collapsing.
• Smart UVLO (Cloud Mode): An integrated Undervoltage Lockout prevents the system from disabling during low-light conditions that would damage a standard inverter.
• Soft Start Technology: A controlled power ramp-up gently engages the inverter, reducing rapid system cycling and allowing for beneficial pump 'pulse' events in low light conditions without overloading the startup.

Technical Specifications

• Rated Power: 150 Watts Continuous
• Peak Power: 300 Watts
• Input Voltage Range (VOC): 20 - 50 VDC (Updated for Rev 5.1)
• Output Voltage: 110 / 120 VAC ±5%
• Output Waveform: Pure Sine Wave
• Maximum Continuous Current (AC): 1.5A
• Minimum Startup Voltage (DC): 24V
• Shut Down Voltage (DC): 20V
• Inputs: Standard chassis-mounted MC4 connectors
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Unit Dimensions: 7.5 x 4.4 x 2.6 inches (190 x 112 x 65 mm)
• Unit Weight: 1.3 pounds

Critical Safety Warnings & Installation Notes

• Strict Solar Input Limits (MAX 50V VOC): This device is rated for a maximum of 50V VOC (Open Circuit Voltage) across all weather conditions.
• Cold Weather Advisory: Solar panel voltage rises significantly in cold weather. Ensure your panel's VOC rating at your coldest local temperature does not exceed 50V. Exceeding this limit will trigger internal protection circuits, may damage the unit, and will void the warranty.
• Grounding: The Suntaqe does not feature a dedicated local equipment grounding terminal. The solar panel frame MUST be grounded at a minimum to mitigate damage from potential lightning strikes.
• FCC Compliance: The included EMC Ferrite (Clamp-On Toroid) MUST be installed on the input power cords to ensure compliance with Class B limits.

Approved Solar Panels

For guaranteed performance and 1-Year Limited Warranty compliance, use the Suntaqe with the following approved panels or configurations (Configurations are either Series (S) or Parallel (P)):

• Grape Solar GS-STAR-100W (2S configuration)
• Grape Solar GS-M120-370W (1S configuration)
• Sharp NU-Q235F4, 235W (1S configuration)
• Vikram Prexos 375 (1S configuration)
• Yingli YL305D-30B, 305W (1S configuration)
• ZNSHINE ZXM6-NHLDD144-450M, 450W (1S configuration)
